The equipment is widely used in the pouring production of load-bearing wheel, caster, rubber roller, sieve plate, sieve mesh, impeller, OA machine, roller skate, buffer and other products.

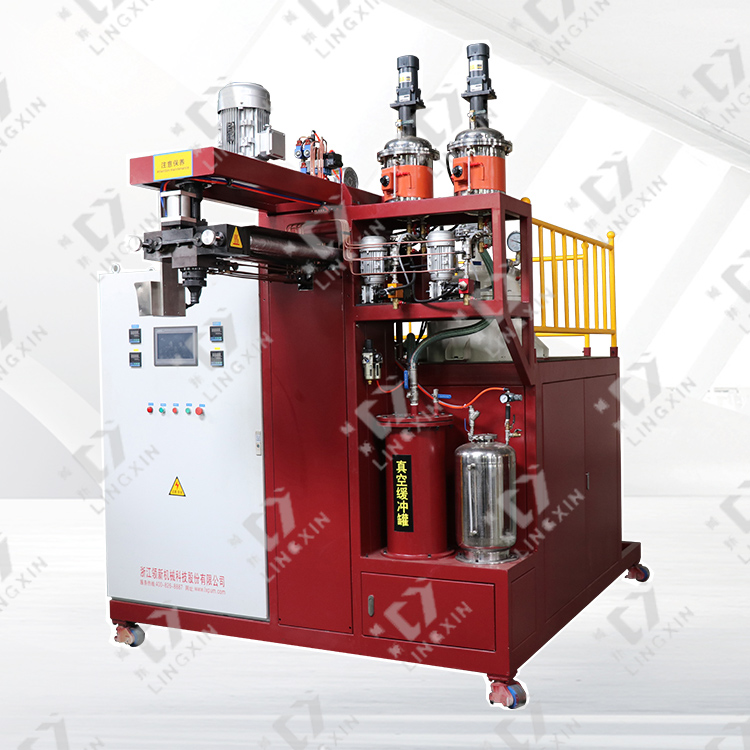

High temperature elastomer color adding pouring machine is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.

Technical parameters of high temperature elastomer color casting machine：

Head: high performance mixing device, adjustable pressure, material spit out accurate synchronization, even mixing; Brand - new mechanical seal structure, ensure non - discharge.

Metering pump, motor: high temperature and low speed high-precision metering pump, accurate metering, accuracy error no more than ±0.5%; By frequency converter and motor to adjust raw material flow and pressure, high precision, simple and quick proportional adjustment.

Control system: PLC and touch screen human-machine interface are adopted to control pouring, automatic cleaning and air flushing of equipment, with stable performance and strong operability. When abnormal conditions occur, it will automatically discriminate, diagnose and alarm, and display abnormal factors. Can load remote control, forget cleaning function, automatic cleaning and feeding power failure and other additional functions.

Vacuum and mixing system: high efficient vacuum defrosting device, combined with special mixing head, to ensure no bubbles in products.

Color paste tank: stainless steel material, with heating and stirring function, copper tube input mixing head, beautiful, stable.
