Anti-fatigue floor mat can be made by using anti-fatigue floor mat two-component low-pressure foaming machine, anti-fatigue floor mat two-component high-pressure foaming machine or anti-fatigue floor mat earth-rail ring production line. The pictures of the machine are as follows:

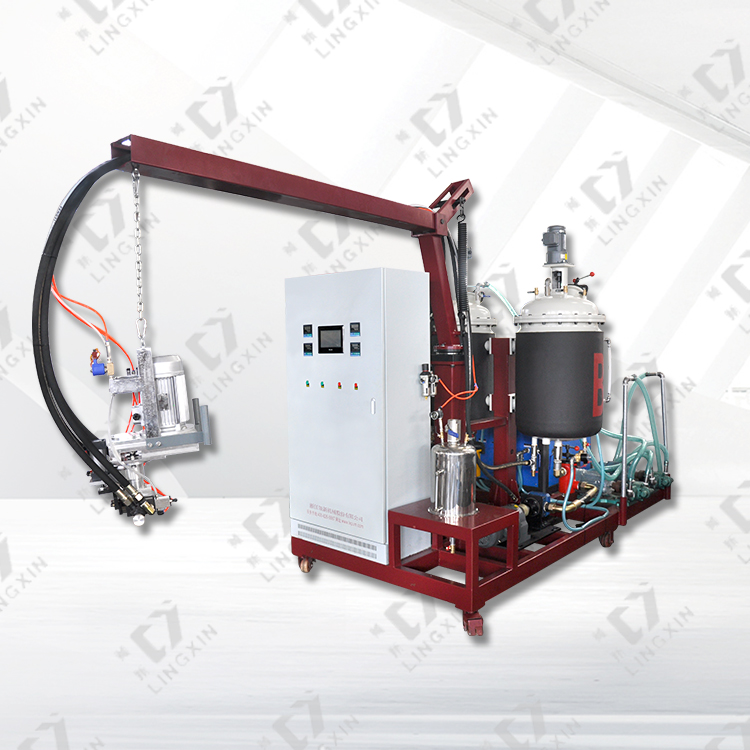

Anti-fatigue MATS two components of low pressure foaming machine is the liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotary precision gear metering pump to the mixed system, the pressure under the action of mixing head open, two components were injected into the small in the mixing chamber, a mixing blade high speed stirring and mixing effect, make the material liquid evenly, to form the required product.

Application: this model is suitable for anti-fatigue floor mat and other products.

Equipment technical parameters:

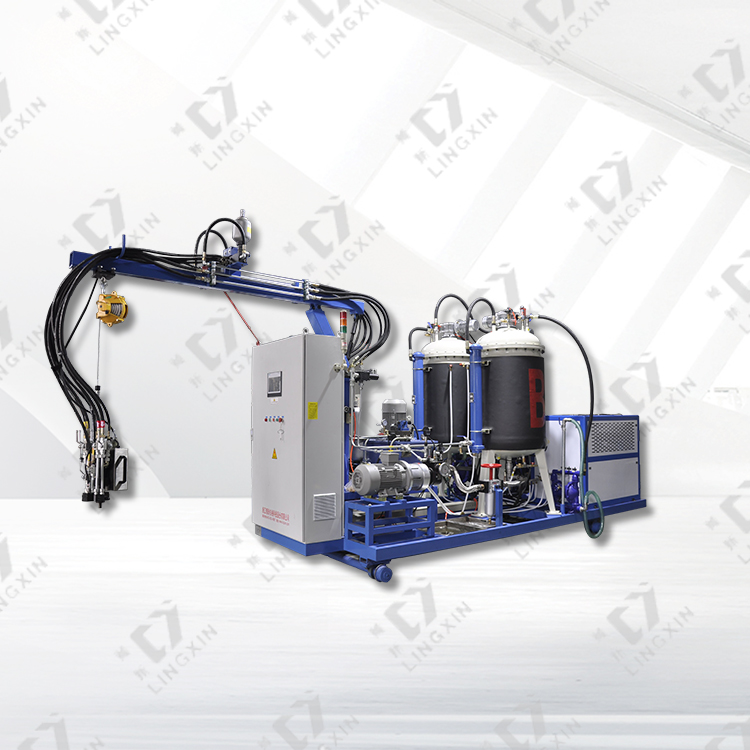

Anti-fatigue MATS two components of high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components at high pressure and velocity were injected into the small mixing chamber, the high speed collision and mixing effect, make the material liquid evenly, to form the required product.

Application: this model is suitable for anti-fatigue floor mat and other products.

Equipment technical parameters:

Anti-fatigue floor mat and floor rail ring production line is a kind of foam production line with energy-saving, simple operation, simple maintenance and quick mold change. Suitable for all kinds of continuous production products foaming, installation of different molds suitable for the production of various specifications of products. The ring line is a continuous production ring line, which is driven by four wheels (two driving wheels and two slave driving wheels) and composed of the ground rail part, the ground rail part, the automatic mold opening and closing foam mold frame, and the electric control part.

Equipment application: this production line is suitable for anti-fatigue floor MATS and other products.

Equipment features:

1) high degree of intelligence. Controlled by PLC microcomputer, can set a variety of production plans and save, switch at any time, can set up to 999 stations.

2) labor saving.

3) high yield.

4) automatic mold opening and closing. Set up computer program to control cylinder opening and closing.

5) it can be matched with robot arm to realize automatic injection and automatic injection of mold release agent.

6) low power consumption. Hot water circulation system for mold heating, maintain the best foam temperature.

??
