Equipment applicationCurrent Position:Home PageConstruction products and equipment

Decorative insulation board production line, metal carving board production line

Free online consultation
+15967710202

Selection of polyurethane equipment

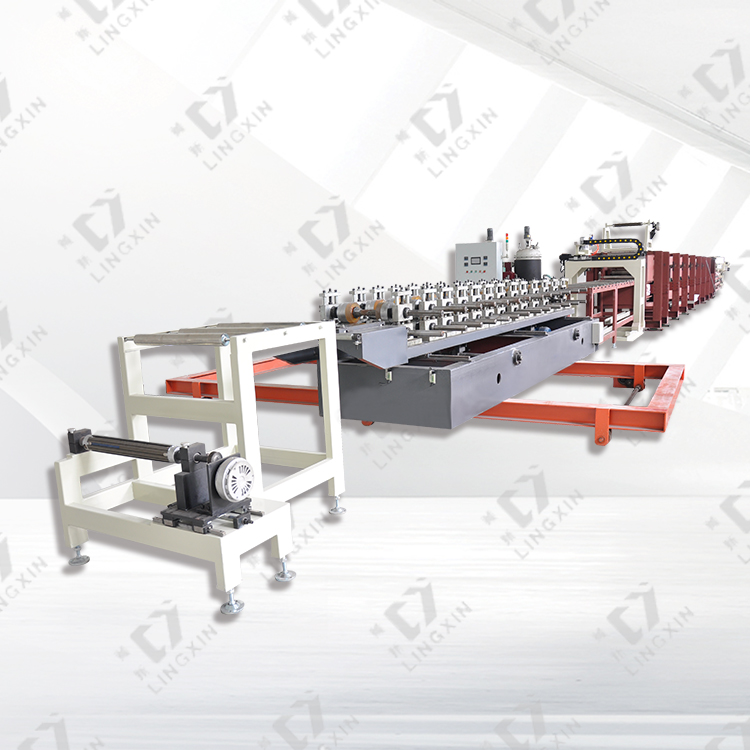

Decorative insulation board. Metal carving board production can choose special low-pressure foam board and decorative insulation board production line. Metal carving board production line, the machine picture is as follows:

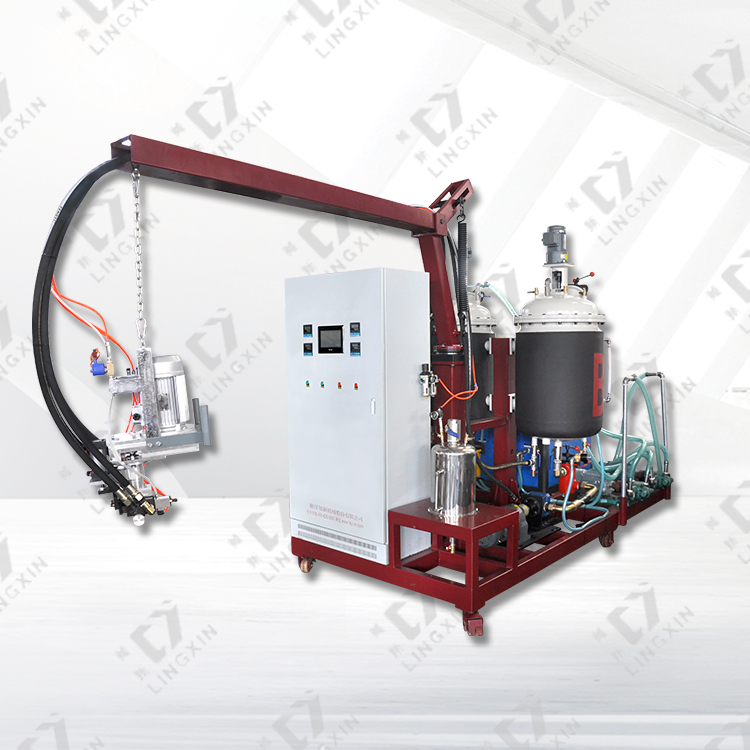

Graphite and calcium carbonate powder can be added in the raw material tank of the sheet special low-pressure foaming machine to increase the flame retardant effect. The foaming machine is one of the core equipment of the whole line, which is a new product independently developed by linxin company, specially used for polyurethane sheet production line. This machine has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.

Equipment application: the equipment is specially used for the production of exterior insulation board, color steel composite board, roof wall panel and other polyurethane composite board.

Technical parameters:


unit type

flow rate

LXPU-RY2-500

120-500g/s


Decoration insulation board production line is composed of a decoiler, sheet metal forming a folding machines, pre heating platform a, a low pressure foaming machine, mobile casting machine, a rolling device, soft surface a set, laminating conveyor a heating rooms, air blower, a set of, secondary printing equipment and drying equipment a, an automatic tracking the cutting machines and unpowered roller, etc. The production line has the characteristics of high automation, easy operation, stable operation, smooth surface of products, precise and beautiful interface gaps and other advantages.

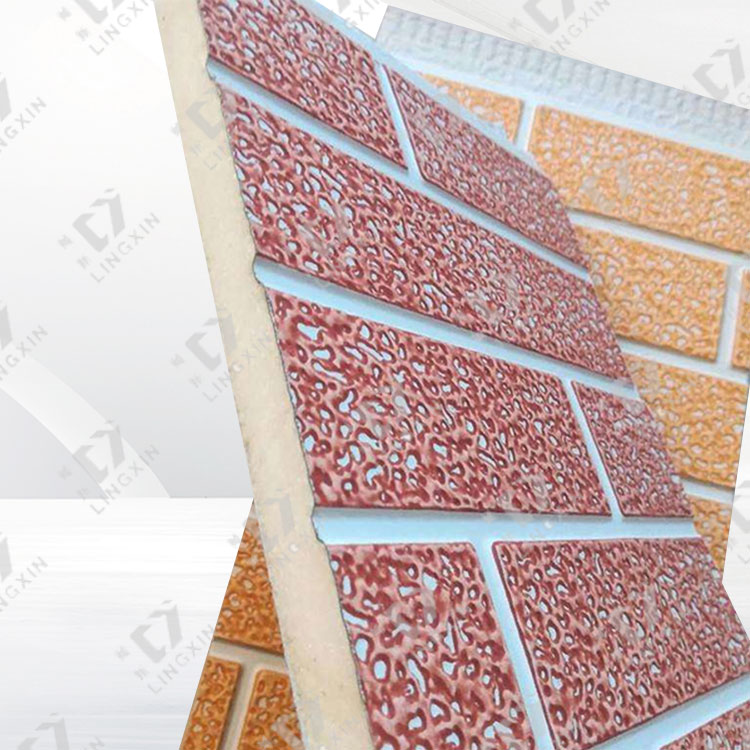

Equipment application: this production line is specially used to produce polyurethane pu decorative insulation board, pu metal carving board and other products.

Equipment technical parameters:


Specification of finished sheet

width 300-500mm (Electric adjustable)

thickness 10-30mm

length >1200mm

Production Line Speed

2~6m/min

Sheet metal forming machine

6 m 16 main roller(According to the selected hem specifications)

Laminated conveyor length

16-32m

Maximum heating temperature

60℃

Overall dimension of production line (length × widest part)

約50000-80000×5000mm

(Can be adjusted according to the site)

total power

About 34kw electrical + heating 42kw
