For information about two-component polyurethane low-pressure foaming machine, please click here
For information about two-component high pressure polyurethane foaming machine, please click here
Click here to view the circular production line
For more information about the disc production line, please click here

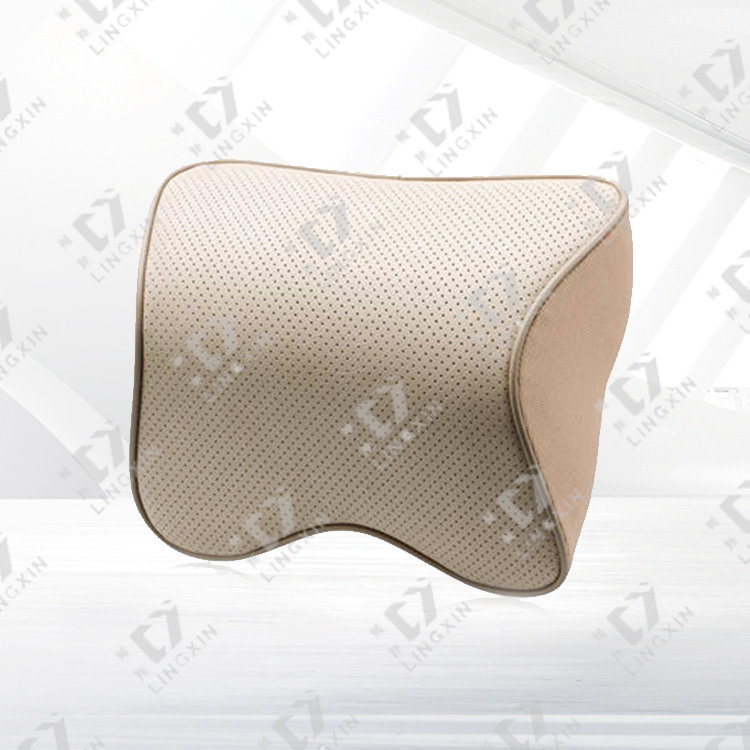

Automobile headrest production can choose automobile headrest two components of low pressure foaming machine, automobile headrest two components of high pressure foaming machine, automobile headrest ring line, automobile headrest disk line. The picture of the machine is as follows:

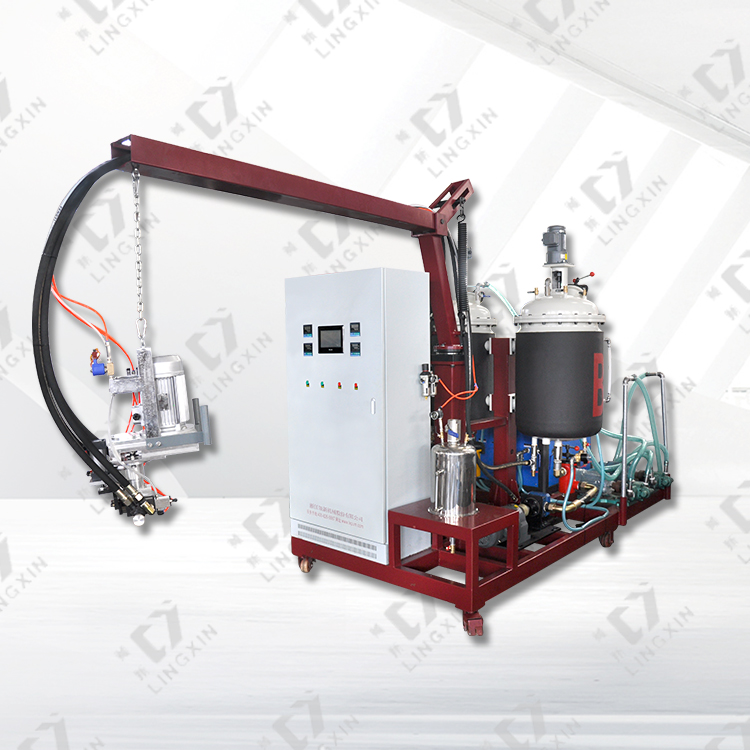

Automobile headrest two-component low-pressure foaming machine is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.
Application: this model is suitable for producing car headrest and other products.
Equipment technical parameters:
Item/model | total spit out quantity （g/s） | total power（kw） | Head stirring speed（r/min） | mix proportion | Overall dimensions (length X width X height) | weight（kg） | |
soft bubble | RR2-450 | 80-450g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 |

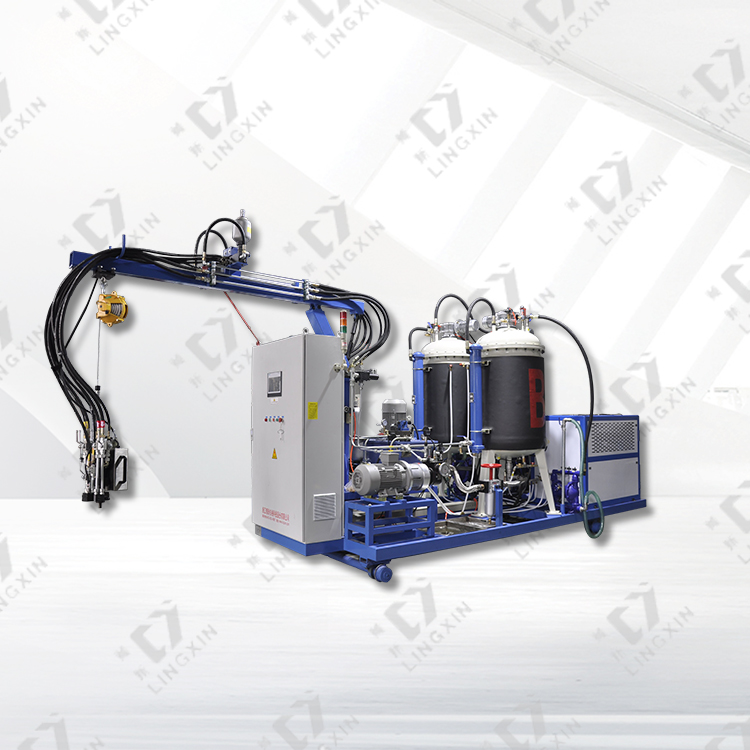

Car headrest two components of high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Application: this model is suitable for producing car headrest and other products.
Equipment technical parameters:
Item/model | H2-L20 |
Spit out quantity（g/s） | 90-400g/s |
A tank capacity（L） | 250/500 |
B tank capacity（L） | 250/500 |
injection pressure（mpa） | 5-15 |
inject time（S） | 0.5-99.99 |
total power（kw） | 26 |
height（kg） | 1800 |

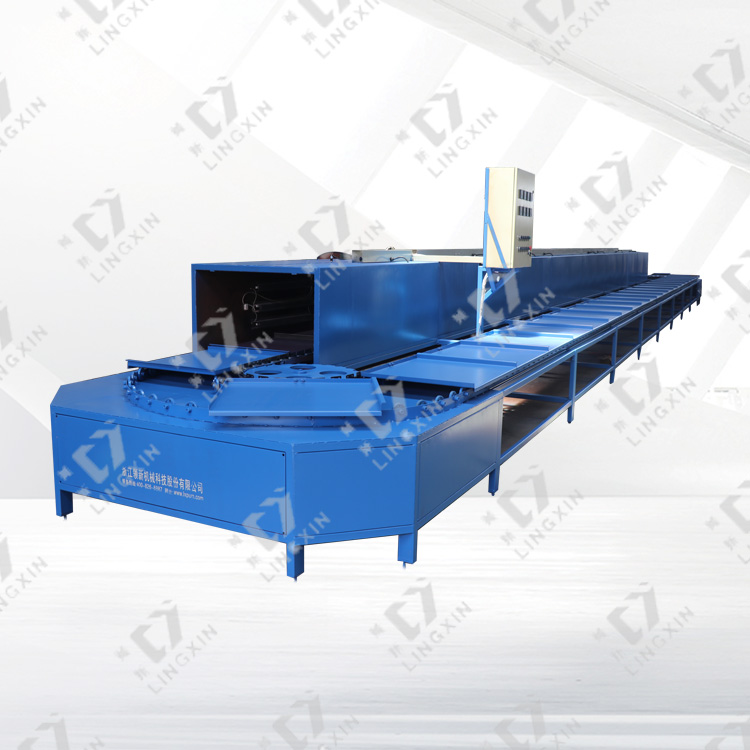

Automobile headrest ring production line is an indispensable and necessary equipment for mass production of polyurethane products. This machine, combined with polyurethane foaming machine, continuously fills the mould on the annular line travelling platform, so as to realize flow operation and achieve the purpose of efficient production.
Application: this model is suitable for producing car headrest and other products.
Equipment features:
1) the equipment is simple and easy to use.
2) labor saving.
3) high yield.
4) the mold is heated by oven and heated evenly.
Equipment technical parameters:
Pipeline length（m） | 17、19、21、23、25（customized） |
Pallet size（mm） | 600*500、500*500、400*500、400*400（customized） |

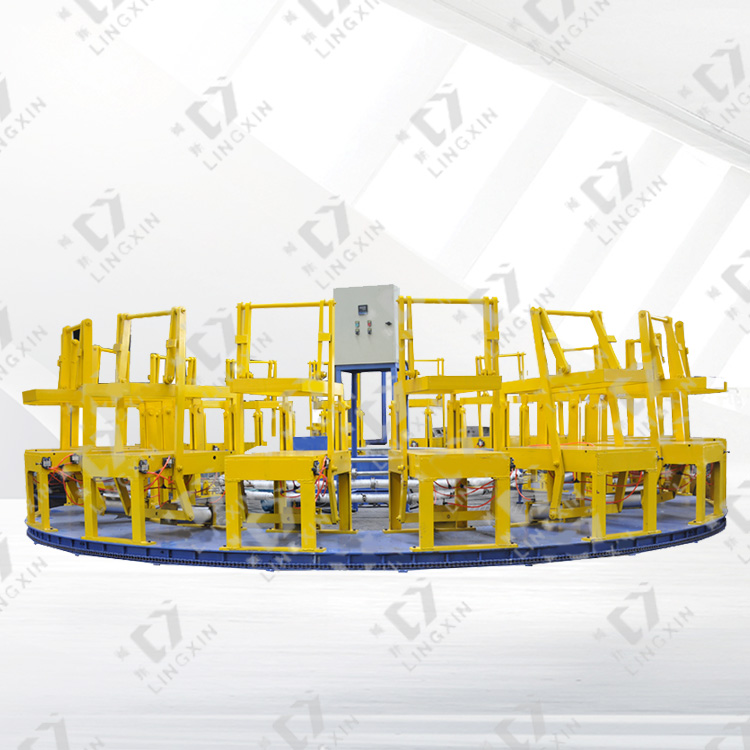

The disc line of automobile headrest is used for foaming production of polyurethane automobile headrest. The equipment operates at a constant speed, and the running speed and production beat can be adjusted. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mold temperature machine.
Equipment application: this production line is suitable for producing polyurethane headrest and other products.
Equipment features:
1) the equipment is simple and easy to use.
2) labor saving.
3) high yield.
4) the mold is heated by water in the mold temperature machine and heated evenly.
Equipment technical parameters:
Disc diameter (m) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
